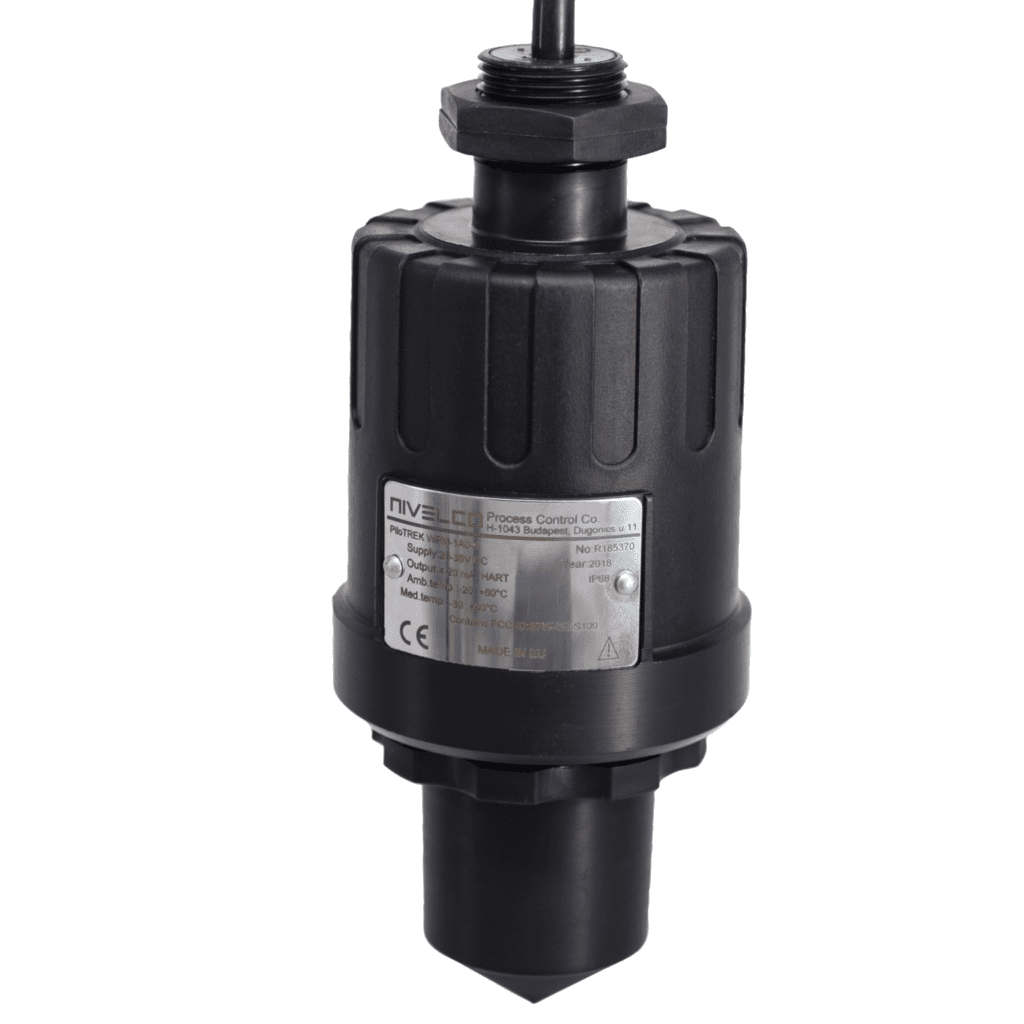

Non-contact Microwave / PiloTREK – Integrated
PRODUCT PROPERTIES
- Plastic housing
- Horn, planar or parabolic antenna
- Stainless steel or plastic encapsulated sensor
- Where IP68 is needed
- 2-wire transmitters
- 25 GHz (K-band) measuring signal
- Non-contact level metering
- Accuracy up to ±3 mm
- Measuring range up to 23 m
- 99-point linearisation
- Explosion-proof variants available
Description
APPLICATIONS
- Level measurement of liquids, emulsions and other chemicals
- Food and beverage
- Chemical industry
- Oil industry
- Water / wastewater industry
SPECIFICATION
| Power supply: | 20–36 VDC |
|---|---|
| Ambient temperature: | −20°C…+60°C |
| Process temperature: | −30°C…+100°C |
| Process pressure: | −1–3 bar |
| Output: | 4…20 mA + HART® |
| Process connection: | 1½”, 2″ or flanges or sanitary |
| Ingress protection: | IP68 |
| Approvals: | ATEX, IEC Ex, FCC, INMETRO |
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 100 × 100 cm |
