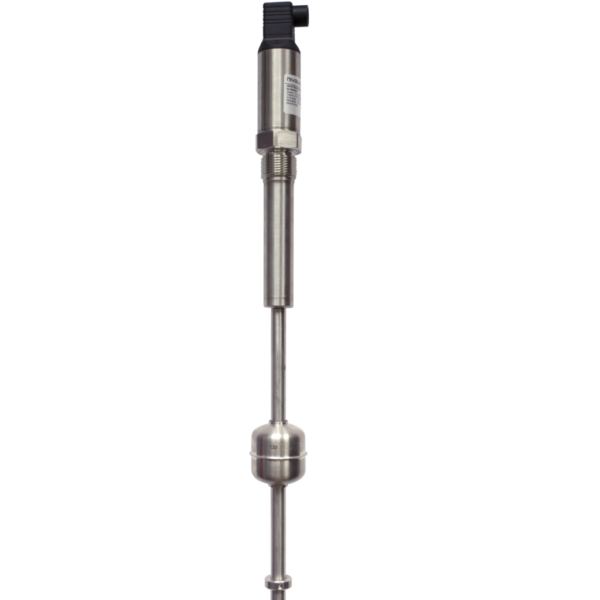

Magnetostrictive / NIVOTRACK® – Integrated
GENERAL DESCRIPTION
NIVOTRACK MI-5, MY-5 magnetostrictive level transmitters are ideal solutions for high accuracy measurements of clean fluids. Its high precision renders the NIVOTRACK suitable for custody transfer measurements. Integrating the transmitter into a process control system is easy thanks to the intelligent signal processing and communication software as well as the wide of range of accessories offered.
Description
PRODUCT PROPERTIES
- Low cost version
- 2-wire integrated transmitter
- 1 mm resolution
- Distance and level measurement
- Normal and mini rigid guide tube versions
- Stainless steel or titanium floats
- IP65 protection
- HART® communication
- Chemicals, solvents, hydrocarbons
- Level monitoring of tanks
- Interface measurement
APPLICATIONS
- Level measurement of liquids, with min. 0.4 kg/dm3 density
- Chemical industry
- Power plants
- Oil industry
- Water industry
| Power supply: | 12.5–36 VDC |
|---|---|
| Ambient temperature: | −40°C…+70°C |
| Process temperature: | −40°C…+90°C |
| Process pressure: | up to 25 bar |
| Measuring range: | 0.3–3.5 m |
| Output: | 4…20 mA, HART® |
| Process connection: | 1″, 2″ BSP/NPT |
| Ingress protection: | IP65 |
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 100 × 100 cm |
